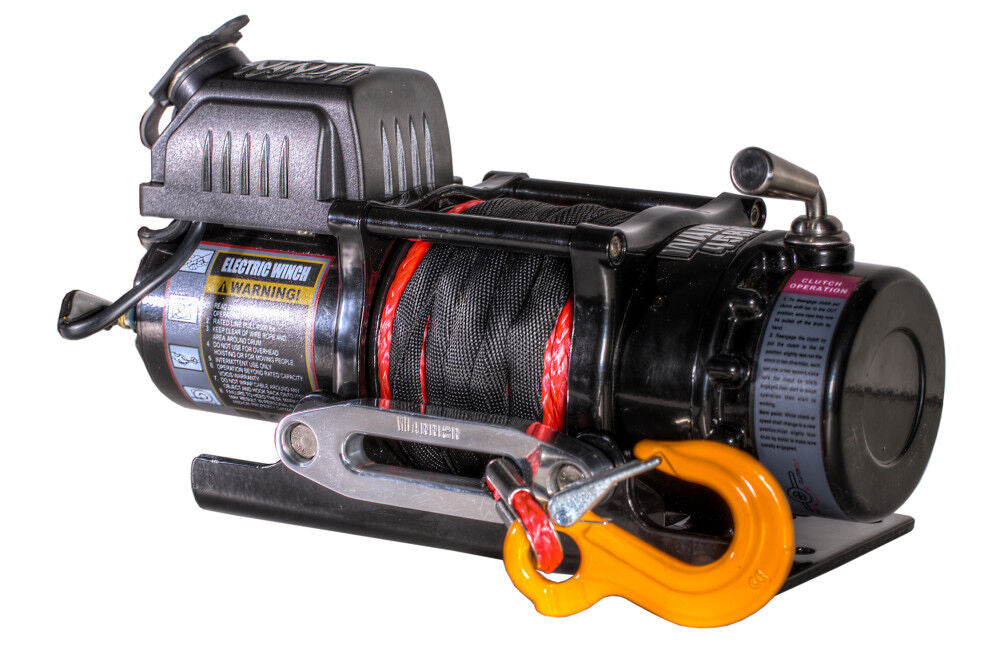

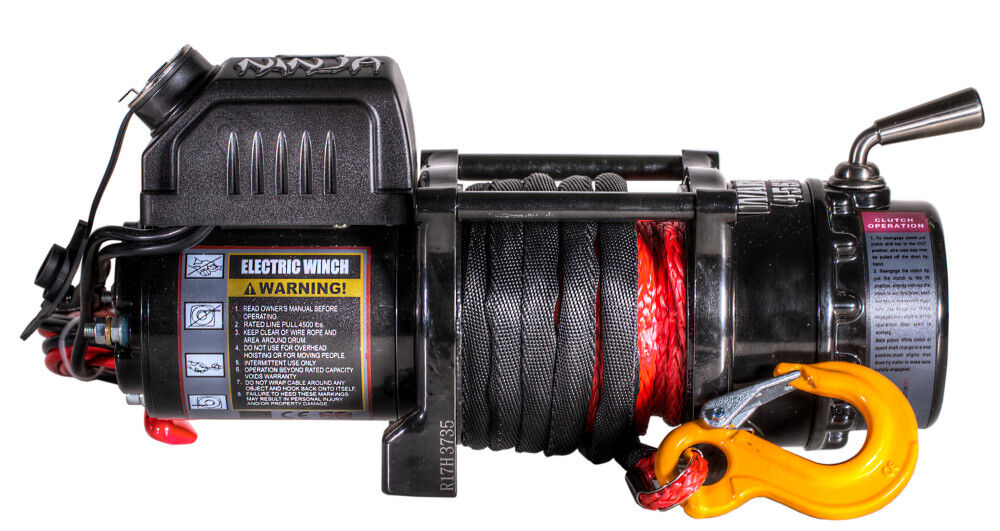

DK2 Ninja Winch Planetary Gear 4500lb with Synthetic Rope
High quality three stage planetary gearing ensure this is one of the quietest and smoothest winches on the market.
The silky smooth performance and the full load holding brake make it the perfect solution for high spec applications.
California Proposition 65 Warning.Features
- Power in and Power out
- High Torque 1.95hp Motor
- HD Waterproof Contactors
- Full Steel Planetary Gearing
- Mount Plate as Standard
- Full Load Holding Break
- Rated Line Pull 4500 lbs (2041 kg) Motor 12v : 1.95hp / 1.37kw Gearing 172:1 Braking Action Auto in the drum Drum Size Dia x L 45 x 97mm (1.77 x 3.82 in) Cable/Rope Dia x L 6.4mm x 14.5m (0.25 in x 48 ft) Dimensions 360 x 126 x 165mm (14.17 x 5 x 6.5 in) Weight 13 kg (29 lbs) Mounting Pattern 129 x 96 mm (5.08 x 3.8 in)
- Layer of Rope/Cable Line Pull lbs (kgs) 1 4500 (2041) 2 3642 (1652) 3 3060 (1388) 4 2638 (1196)
- Line Pull lbs (kgs) Line Speed ft/min (m/min) Amp Draw 12v Amp Draw 24v 0 11.6 (3.6) 20 15 1500 (680) 9.2 (2.8) 70 40 2500 (1134) 7.8 (2.4) 100 65 3500 (1587) 6.6 (2.0) 140 80 4500 (2041) 4.9 (1.5) 200 129
Specifications
Brand Name - DK2
Assembled Depth (in) - 14.9
Assembled Weight (lbs) - 34
Assembled Width (in) - 7.9
Assembly Required - Yes
Color - Black and Gray
Country of Origin - China
Height (in) - 5
MFG Part # (OEM) - C4500N-SR
Material - Steel
Package Contents - Ninja Winch Planetary Gear 4500lb with Synthetic Rope
Package Depth - 15.75
Package Height - 8
Package Weight - 36
Product Condition - New
Sound Decibels (dB) - 70 dBA
UPC - 826518005265
Warranty Type - 1 Year
