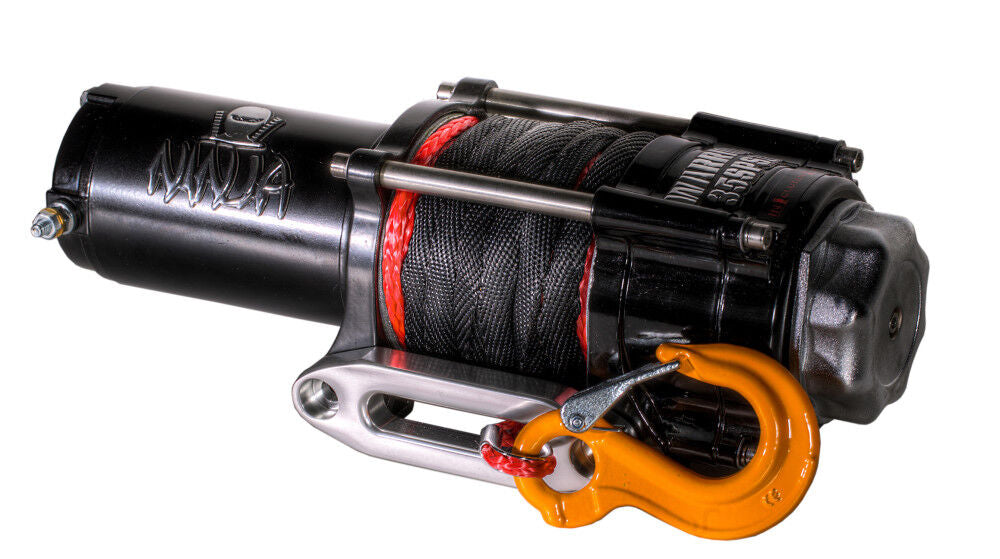

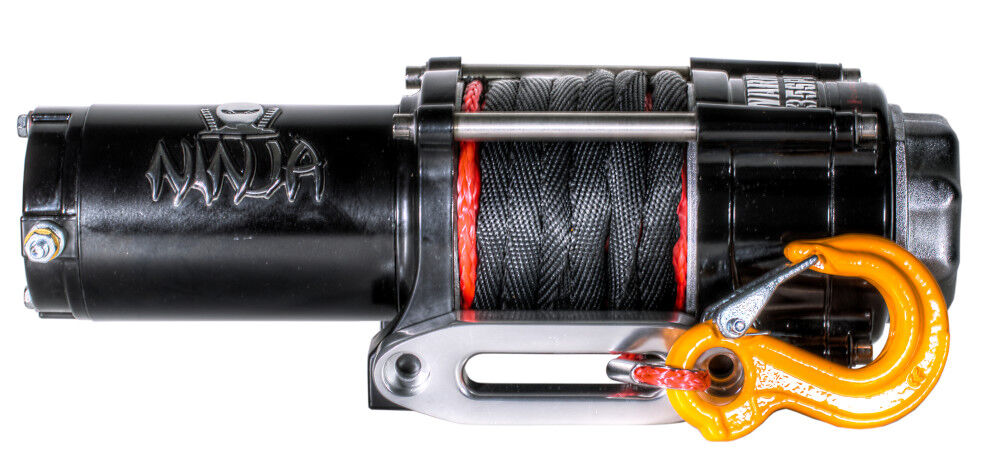

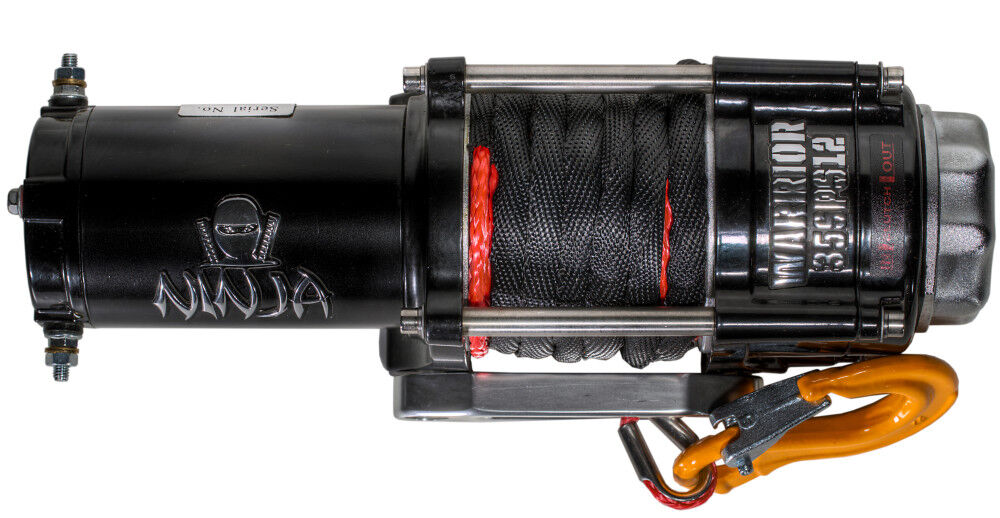

DK2 Ninja Winch Planetary Gear 3500lb with Synthetic Rope
DK2 Warrior Ninja 3500 Winch is Ideal for large ATV's and small trailers.
A huge high power motor, heavy duty clutch, heavy duty steel gearing and heavy duty waterproof contactors ensure the ultimate in performance and reliability.
Strengthened Steel drum makes it ideal to use with Synthetic Rope.
Watertight 4 Pin connection allows the use of 'Plug and Play' Wireless. 1 Year Limited Warranty.
Makes a great gift!
California Proposition 65 Warning.Features
- Sealed High Power Motor
- Heavy Duty Watertight Contactors
- Good for LARGE ATV's and small trailers, Suitable for synthetic rope
- Full Steel planetary gearing strengthened steel drum, Watertight controller socket
- Gloss chip resistant paint
- Line Pull lbs Line Speed ft/min Flow L/min Pressure Mpa 0 10.5 45 25 1000 8.9 75 40 2000 7.5 130 75 3500 4.6 200 120
- Layer of Wire Line Pull lbs Rope ft 1 3500 2 2789 3 2319 4 1984 5 1733
- Rated Line Pull 3500 lbs Motor 12V: 1.95 HP Hydraulic Dis 3.38 oz/r Gearing 170:1 Drum Size Dia x L 1.45 x 3.14 inch Cable Dia x L 0.21 x 0.50 inch x 42 feet Dimensions 13.62 x 4.45 x 4.64 inch Weight 22.05 lbs Mounting Pattern 5" x 3" inch
Specifications
Brand Name - DK2
Assembled Depth (in) - 13.62
Assembled Weight (lbs) - 22
Assembled Width (in) - 4.44
Assembly Required - Yes
Color - Black and Gray
Country of Origin - China
Height (in) - 4.64
MFG Part # (OEM) - C3500N-SR
Material - Steel
Package Contents - Ninja Winch Planetary Gear 3500lb with Synthetic Rope
Package Depth - 15.75
Package Height - 8
Package Weight - 24
Product Condition - New
Sound Decibels (dB) - 70 dBA
UPC - 826518005241
Warranty Type - 1 Year
