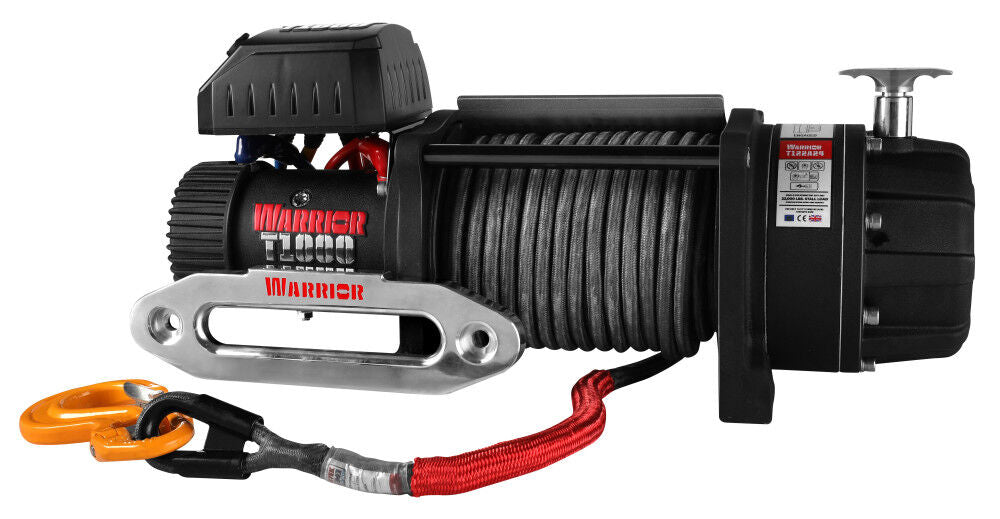

Elite Combat Winch 22000lb Synthetic Rope T1000-220AE
Elite Combat Winch 22000lb Synthetic Rope T1000-220AE is backordered and will ship as soon as it is back in stock.
DK2 Elite Combat Winch 22000lb Synthetic Rope
Built specifically for military use, able to withstand extreme climates & temps.
Features include hardened 3 stage planetary gears for reliable and efficient use in the harshest environments.
The waterproof remote control has thermometric LED indicators signals to monitor the temperature of the motor and high temp lithium grease is used which doesnÄôt solidify in extreme climates.
California Proposition 65 Warning.Features
- IP68 Rated Military Grade Winch & Control Box.
- Hardened 3 stage planetary gears
- Waterproof remote control with LED indicators.
- Corrosion & Chemical Resistant Powder Coat
- High Temperature Lithium Grease that won't solidify in extreme temperatures
- Rated Line Pull 22000 lbs (9979 kgs) Motor 12V : 5.5kW / 7.4hp 24V : 6.1kW / 8.2hp Gearing 450:1 Drum Size - Dia x L 88 x 213mm (3.4 x 8.3 in) Cable - Dia x L 13.8mm x 24m (0.54 in x 78.7 ft) Dimensions 638 x 214 x 289mm (25.2 x 8.4 x 11.4 in) Mounting Pattern 254 x 114.3mm / 254 x 165.1mm 10 x 4.5 in / 10 x 6.5 in Weight kg 75kg (165.3 lbs)
- Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m) 1 22000 (9979) 14.1 (4.3) 2 17300 (7847) 32.8 (10.0) 3 14260 (6468) 55.1 (16.8) 4 12130 (5502) 78.7 (24.0)
- Line Pull lbs (kgs) Line Speed 12v ft/min (m/min) Line Speed 24v ft/min (m/min) Amp Draw 12v Amp Draw 24v 0 21.7 (6.6) 23.0 (7.0) 65 40 5000 (2268) 9.8 (3.0) 10.2 (3.1) 175 100 10000 (4536) 6.6 (2.0) 7.2 (2.2) 270 150 15000 (6804) 4.9 (1.5) 5.2 (1.6) 350 200 22000(9979) 3.0 (0.9) 3.3 (1.0) 460 270
Specifications
Brand Name - DK2
Assembled Depth (in) - 25.2
Assembled Weight (lbs) - 136
Assembled Width (in) - 8.4
Assembly Required - Yes
Color - Black
Country of Origin - China
Height (in) - 11.4
MFG Part # (OEM) - T1000-220AE
Material - Steel
Package Contents - Elite Combat Winch 22000lb Synthetic Rope
Package Depth - 14.76
Package Height - 27.56
Package Weight - 136
Product Condition - New
Sound Decibels (dB) - 70 dBA
UPC - 827518007211
Warranty Type - 1 Year
