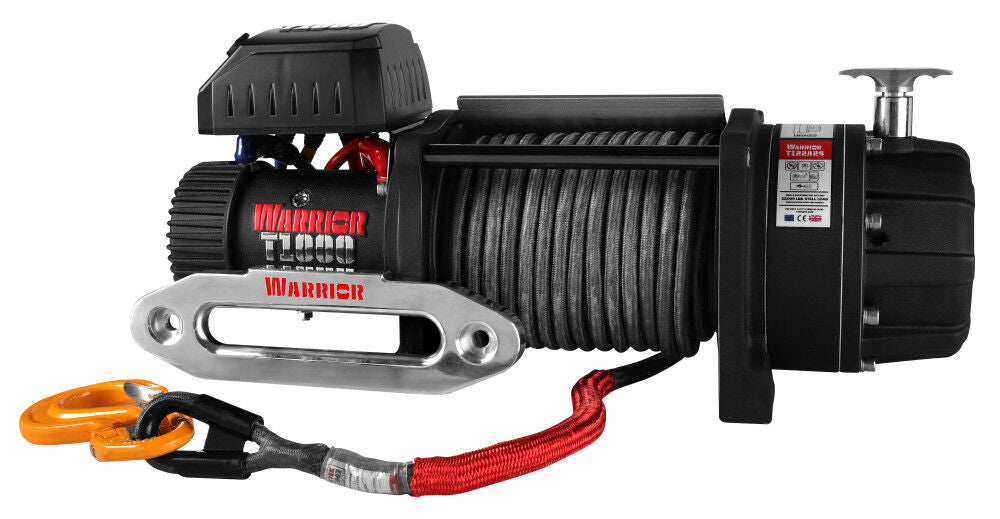

DK2 Elite Combat Winch 14500lb Synthetic Rope
Built specifically for military use, able to withstand extreme climates & temps.
Features include hardened 3 stage planetary gears for reliable and efficient use in the harshest environments.
The waterproof remote control has thermometric LED indicators signals to monitor the temperature of the motor and high temp lithium grease is used which doesnÄôt solidify in extreme climates.
California Proposition 65 Warning.Features
- IP68 Rated Military Grade Winch & Control Box.
- Hardened 3 stage planetary gears
- Waterproof remote control with LED indicators.
- Corrosion & Chemical Resistant Powder Coat
- High Temperature Lithium Grease that won't solidify in extreme temperatures
- Rated Line Pull 14500 lbs (6577 kgs) Motor 12V : 5.4kW / 7.2hp 24V : 5.7kW / 7.6hp Gearing 228:1 Drum Size - Dia x L 63 x 217mm (2.48 x 8.5 in) Cable - Dia x L 11mm x 23m (0.43 in x 75.4 ft) Dimensions 612 x 160 x 259mm (24.1 x 6.3 x 10.2 in) Mounting Pattern 254 x 114.3mm 10 x 4.5 in 4-M10 Weight kg 41kg (90 lbs)
- Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m) 1 14500 (6577) 14.4 (4.4) 2 11177 (5070) 33.1 (10.1) 3 9093 (4124) 56.1 (17.1) 4 7664 (3476) 75.4 (23.0)
- Line Pull lbs (kgs) Line Speed 12v ft/min (m/min) Line Speed 24v ft/min (m/min) Amp Draw 12v Amp Draw 24v 0 29.5 (9.0) 31.1 (9.5) 65 40 5000 (2268) 11.8 (3.6) 13.8 (4.2) 210 115 10000 (4536) 5.9 (1.8) 7.5 (2.3) 300 190 14500 (6577) 3.9 (1.2) 5.2 (1.6) 405 260
Specifications
Brand Name - DK2
Assembled Depth (in) - 25.2
Assembled Weight (lbs) - 165.3
Assembled Width (in) - 8.4
Assembly Required - Yes
Color - Black
Country of Origin - China
Height (in) - 11.4
MFG Part # (OEM) - T1000-145AE
Material - Steel
Package Contents - Elite Combat Winch 14500lb Synthetic Rope
Package Depth - 13.18
Package Height - 25
Package Weight - 82.67
Product Condition - New
Sound Decibels (dB) - 70 dBA
UPC - 827518007198
Warranty Type - 1 Year
