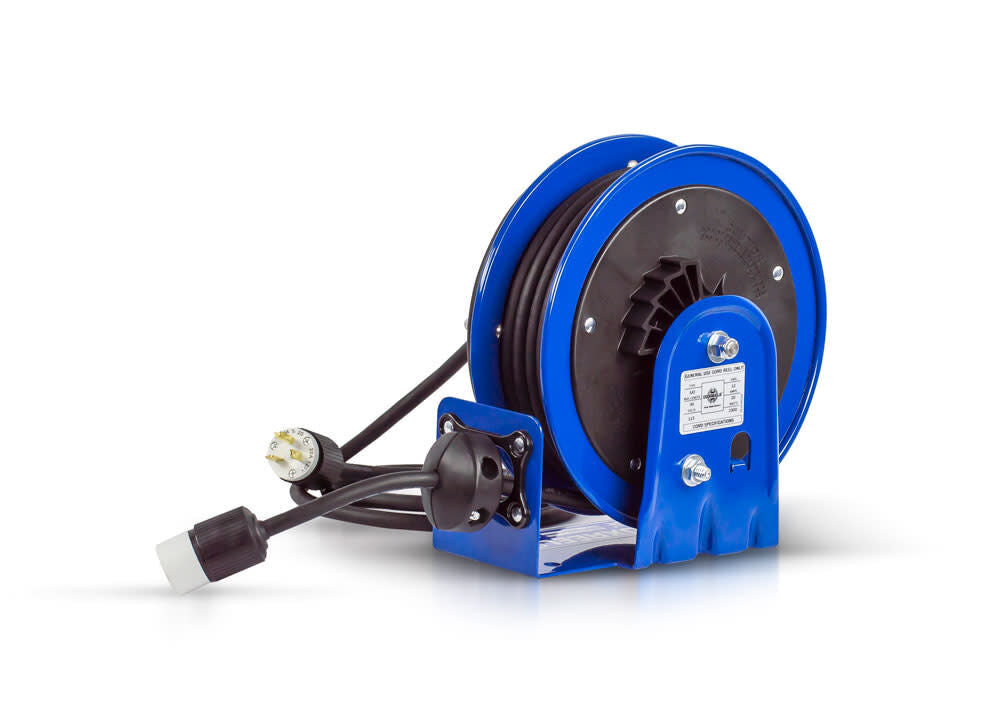

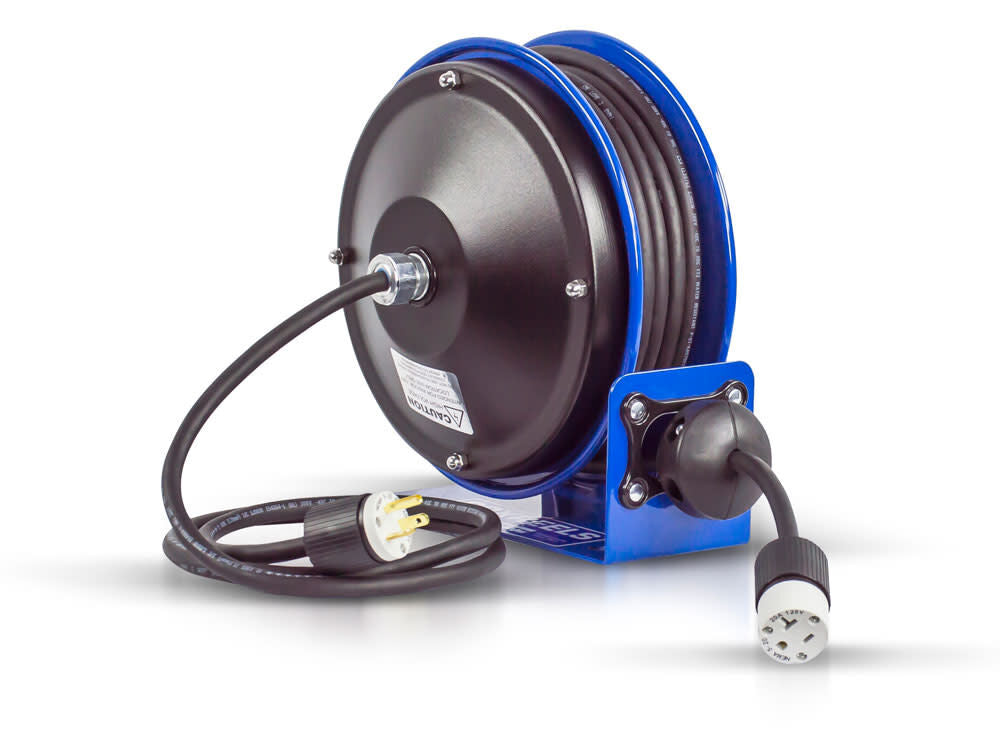

Coxreels Hose Reel 30' Compact Spring Driven Cord Reel Single Receptacle with 12GA Steel Base
COXREELSÆ PC10 Series Power-Cord Series is a unique compact addition to our original line of power cord and light reels.
This ground-breaking design sets a new bar as the ideal cord management solution capable of fulfilling any commercial or industrial application where space is limited.
Modeled after the LG ÄúLittle GiantÄù Series, this series is equipped with a continuous radius grommet style power cord guide and a unique C-PEP Composite hub featuring excellent chemical resistance and additional strength at cold temperatures.
California Proposition 65 Warning.Features
- COMPONENT COVER - External, easily accessible, heavy gauge CPC‚Ñ¢ powder coated steel components cover for fast and simple slip ring routine maintenance. No need to remove the reel from its mount.
- RATCHET HUB - Non-corrosive, high strength CoxComposite‚Ñ¢ ratchet hub with self lubricating bronze bearings secures hose at desired length.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 12GA STEEL BASE - Solid one piece, 12GA steel base and support post for maximum stability. Compact & lightweight spring driven hose reel.
- GROMMET - CoxComposite‚Ñ¢ grommet with continuous radius design that does not pinch or catch the hose during operation.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish,adjustable solid rubber cord stop, 5' lead cable and grounding plug, sturdy permanently lubricated precision bearings, and single industrial receptacle
- 30ft Compact Spring Driven Cord Reel Single Receptacle with 12GA Steel Base
Specifications
Brand Name - Coxreels
Assembled Depth (in) - 10.5
Assembled Weight (lbs) - 17
Assembled Width (in) - 7.375
Attachment Method - Interconnect plug ins
California Proposition 65 Warning Required - Yes
Color - Blue
Country of Origin - United States
Height (in) - 10.625
MFG Part # (OEM) - PC10-3012-A
Material - Steel
Mounting Type - Floor, Wall, Ceiling, Bench and Vehicles
Package Contents - Spring Driven Reel, 30' SJO Cord, single receptacle, Ball stop, 5'Lead cable & grounding plug
Package Depth - 16.5
Package Height - 13.5
Package Weight - 18
Package Weight (lbs) - 18
Product Condition - New
Reel Drive / Return Type - Spring Loaded Return
UPC - 0674255924437
Warranty Type - 2 Years Limited
