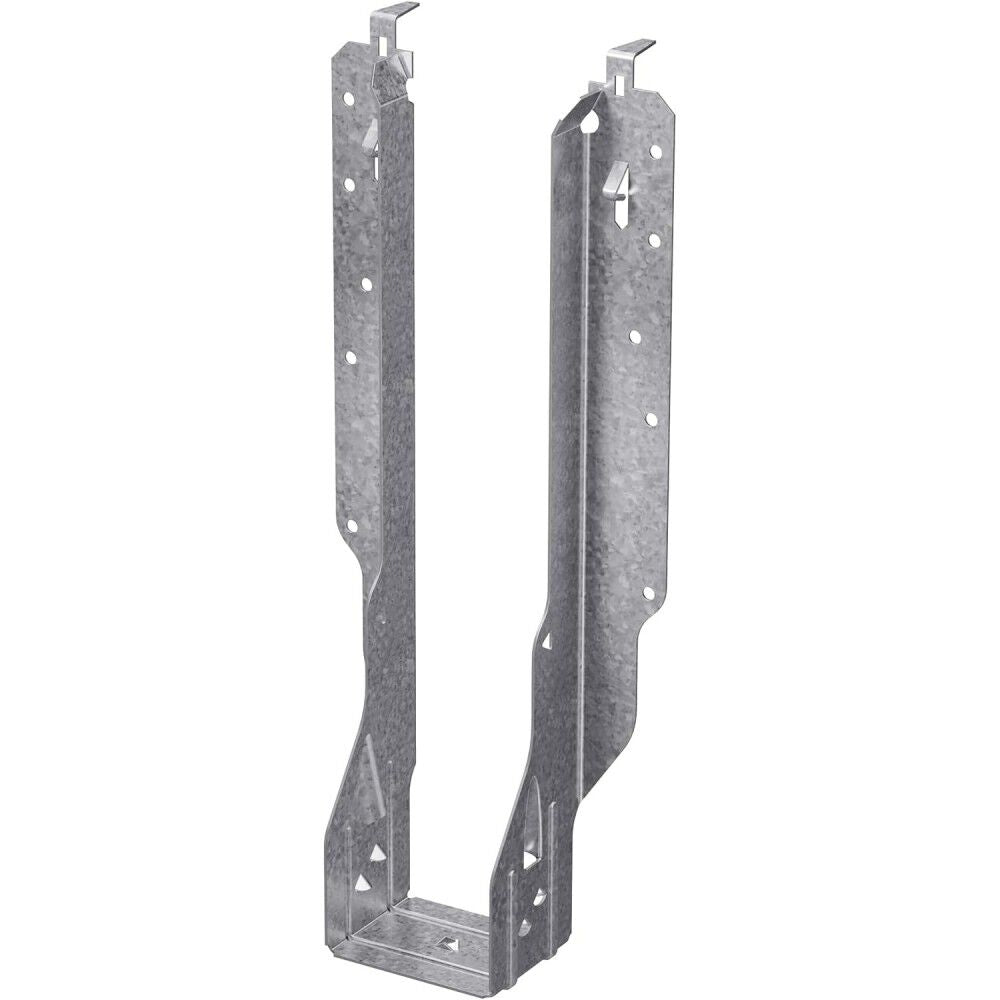

Simpson Strong-Tie 18 Gauge Galvanized 2-5/16 x 11-7/8 In.
I-Joist Hybrid Hanger
The IUS is a hybrid hanger that incorporates the advantages of the face-mount and top-mount hanger.
The Strong-Grip seat feature allows the I-joist to snap securely into place without the need for joist nails, resulting in a low installed cost.
The IUS hanger also features easy-to-reach face nails and self-jigging locator tabs for easier installation.
California Proposition 65 Warning.Features
- Locator tabs may be bent back to adjust for hanger placement or to leave a completely smooth top surface
- Models will normally accommodate a skew of up to 5 Deg
- IUS-series hangers are tested, load rated and code compliant
- Fasten hanger to header. Position I-joist into hanger and snap into place. No joist nailing required. Some IUS models have triangle and round header nail holes. To achieve max. download, fill both round and triangle holes
- Locator tabs are not structural. They may be bent back to adjust for hanger placement
- For rimboard applications see technical bulletin Hangers on Rimboard Headers (T-C-RIMBDHGR)
- I-joists with web stiffeners or rectangular sections can be used with the installation of (2) 0.148 In. x 1-1/2 In. nails into the optional triangle joist nails. This will achieve 365 Lbs total uplift
- Web stiffeners are not required with I-joists unless required by the I-joist manufacturer
Specifications
Brand Name - Simpson Strong-Tie
Assembled Weight (lbs) - 5
Country of Origin - China
MFG Part # (OEM) - IUS2.37/11.88
Package Contents - I-Joist Hybrid Hanger with Snap-In
Package Depth - 2
Package Height - 11.875
Package Weight - 5
Product Condition - New
UPC - 707392827108
Warranty Type - No Manufacturer's Warranty
