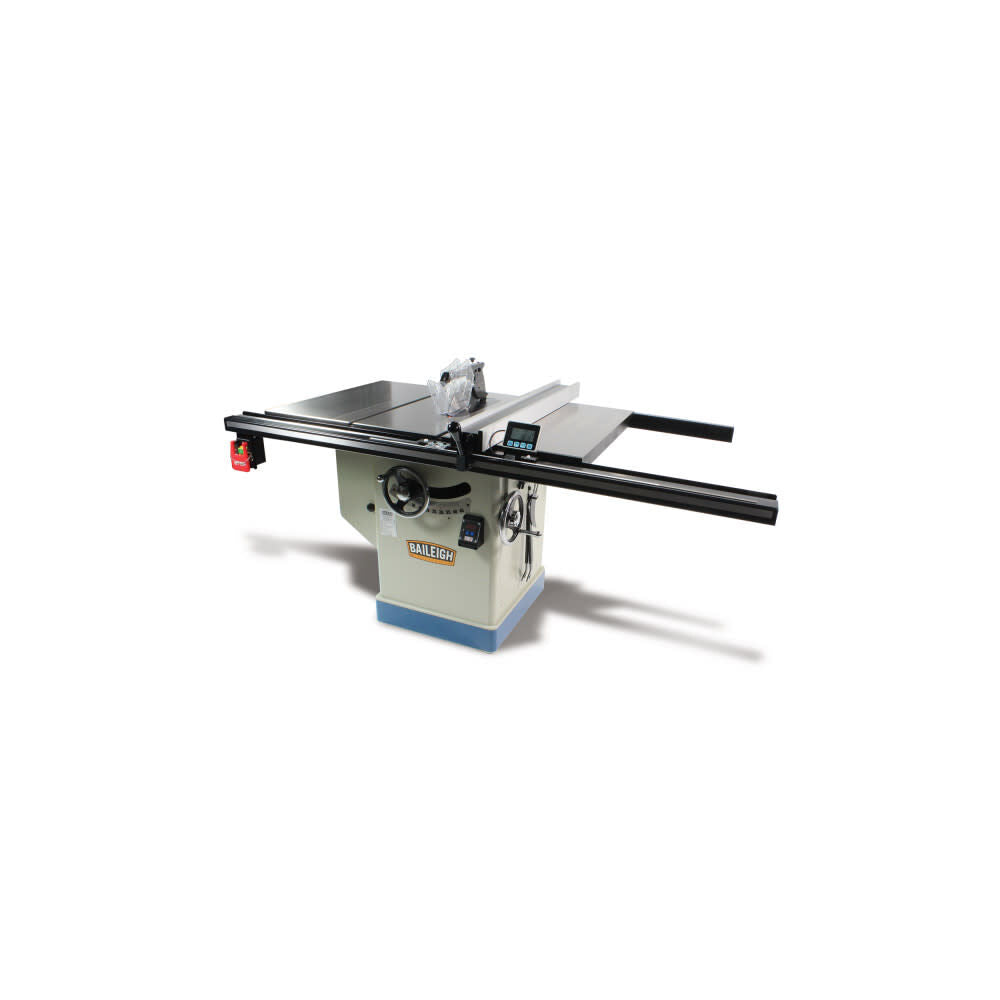

Baileigh TS-1248P-36 Professional Cabinet Table Saw 220V 12in
This 680 lbs industrial table saw can cut thousands of board feet per day and make angles that fit perfectly.
The steel base, massive trunnion and cast iron table maintain accuracy.
California Proposition 65 Warning.Features
- 36 In. right-side rip capacity, also available with a 52 In. rip capacity, 5HP motor turns at 3600 Rpm, accepts standard 12 In. blades with a 1 In. arbor that can tilt 45 Deg to the left, Runs on 220V 1 Phase power, so it’ll work almost anywhere
- 48 In. x 30 In. work table with 36 In. extensions, both the table and its extensions are made from precision-ground cast iron, table surface will stay square because of webbed or criss-cross design on the bottom that meshes into the base, the tabletop won’t warp in spite of heat and moisture

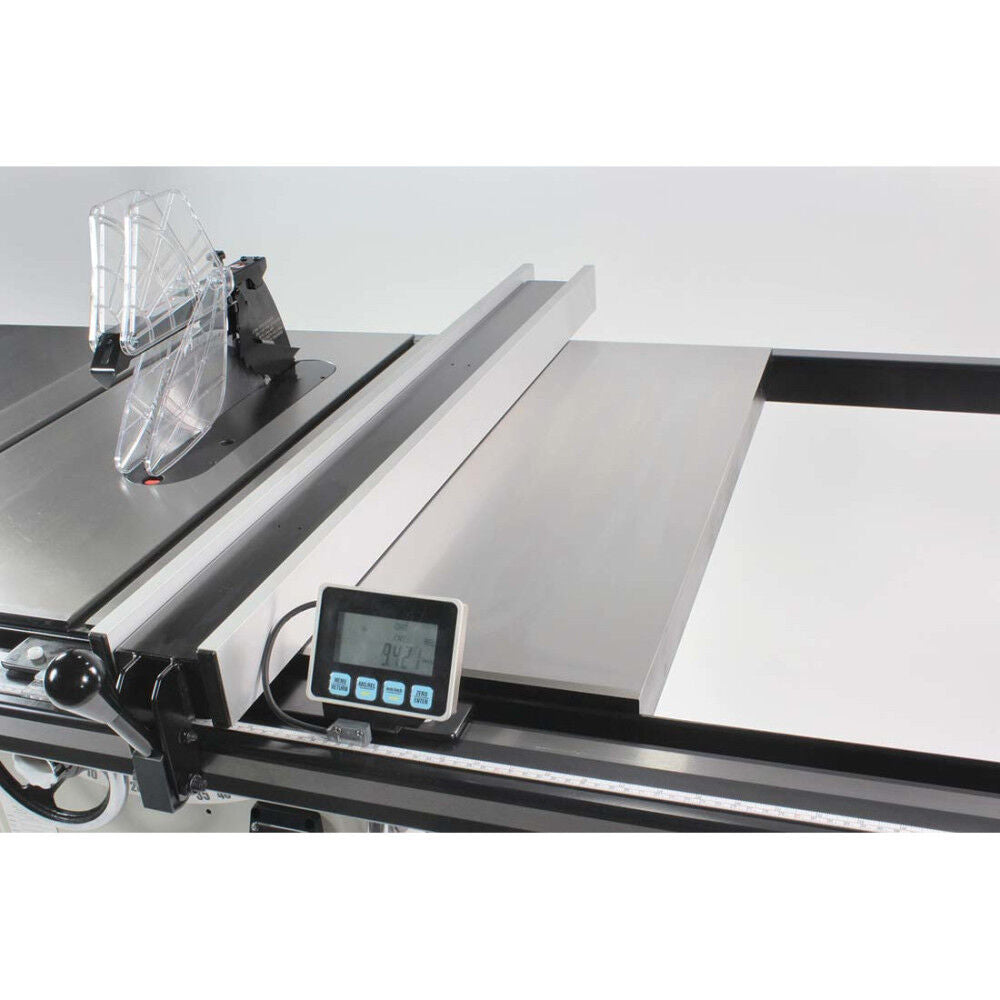

- Smoothly finished table allows wood to slide without resistance, there’s no unevenness to compromise the accuracy of your cut, you can polish the cast-iron table up and restore the original shine even after years of hard use, rip fence incorporates a digital readout (DRO) for rip capacity, just zero In. the DRO at the blade to get a perfect, repeatable length every time

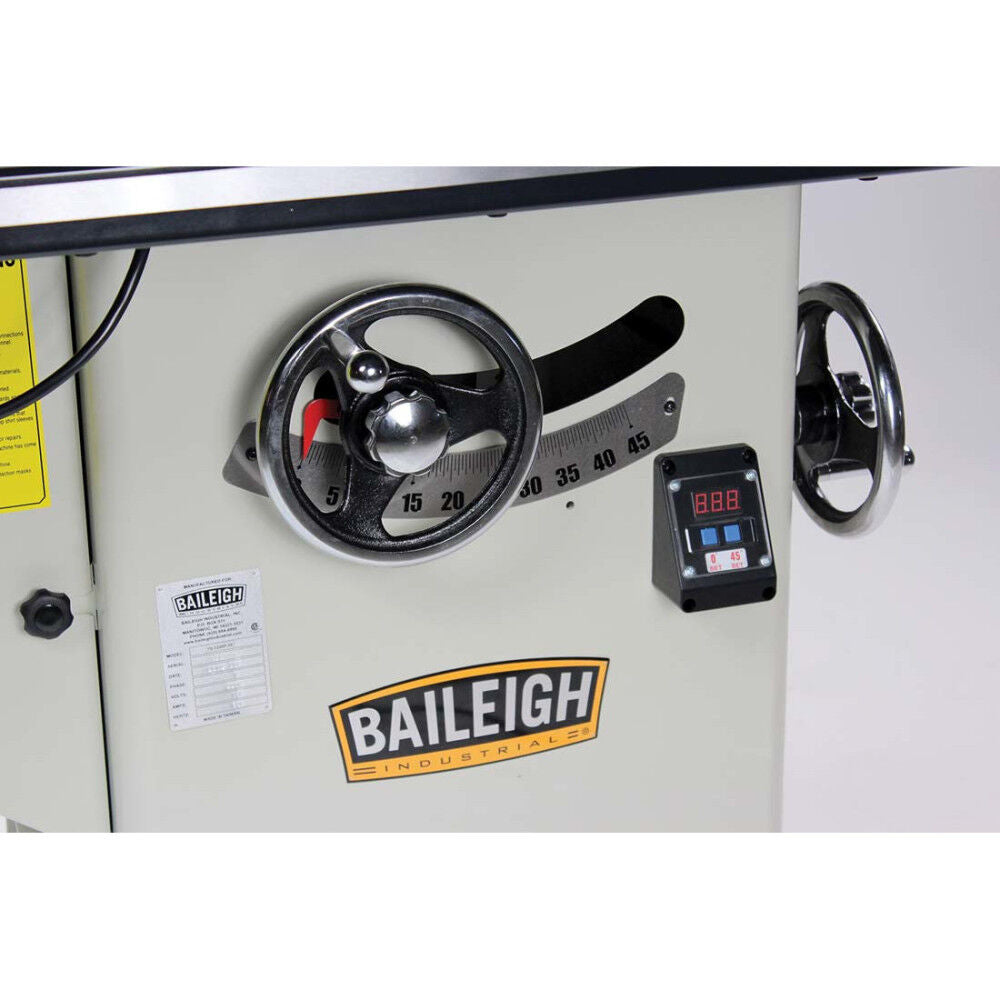

- Steel handwheels, for adjusting blade height and miter angle, are located on the base, rack and pinion mechanism makes it easy to move the blade up and down, comes with a simple miter gauge on the tabletop and DRO for the bevel angle on the base to help with repeatability, massive steel trunnion is attached to the base, so the machine won’t wobble or exceed safe noise levels

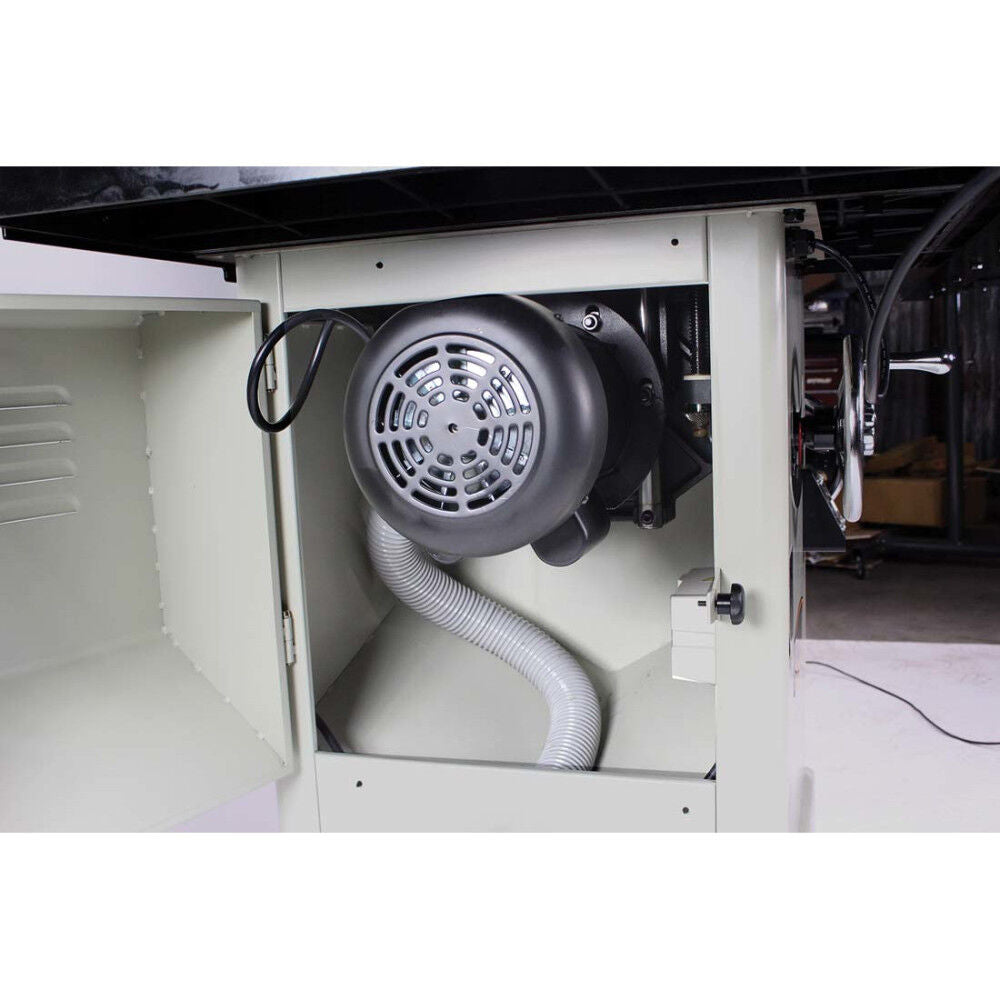

- Rigid all-steel base maintains accurate alignment and keeps vibrations down to a minimum, dust shroud inside the machine collects sawdust from under the blade and funnels it to the 4 In. port, just hook up an extraction system
- CSA-approved

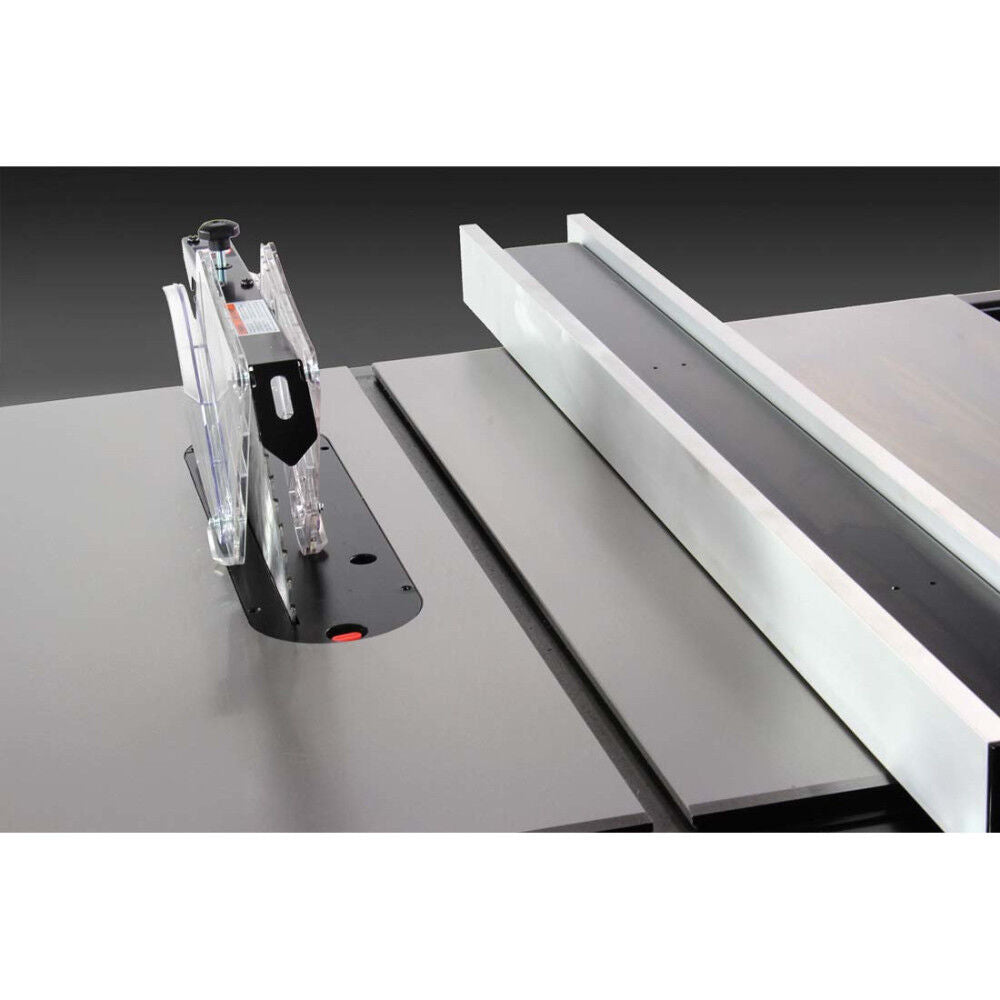

- 4-piece safety blade guard with anti-kickback reverse teeth
- Includes both a splitter and riving knife to help spread the wood and prevent pinching or twisting
- Covered by a 1-year parts warranty, as well as lifetime technical support by phone
Specifications
Brand Name - Baileigh
Amperage (A) - 0.0
Assembled Weight (lbs) - 680
Country of Origin - Taiwan
CSA Certified - Yes
Dust Port - Yes
Dust Port Outside Diameter (in) - 4
ETL Listed - No
Horsepower (hp) - 5
MFG Part # (OEM) - 1008082
Material - Cast Iron
Maximum Dado Diameter (In) - 8
Maximum Dado Width (in) - 0.8125
Package Contents - Table Saw, Splitter and Riving Knife,Miter Gauge
Package Depth - 48
Package Height - 60
Package Weight - 680
Phase - 1
Product Condition - New
Spindle Lock - No
Table Length (in) - 24.4
Table Width (in) - 30.7
UL Listed - No
UPC - 400008001106
Warranty Type - 1 Year
