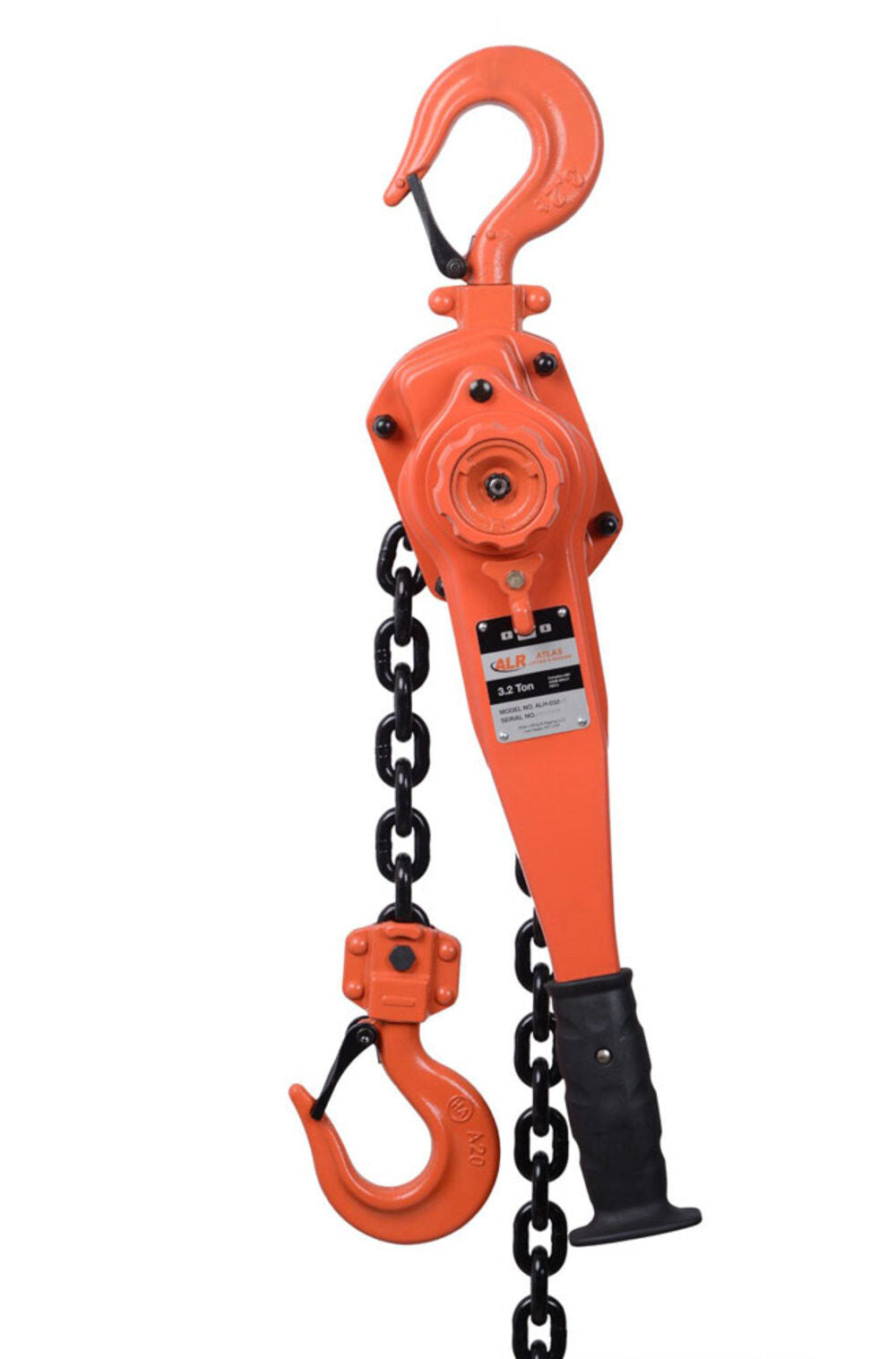

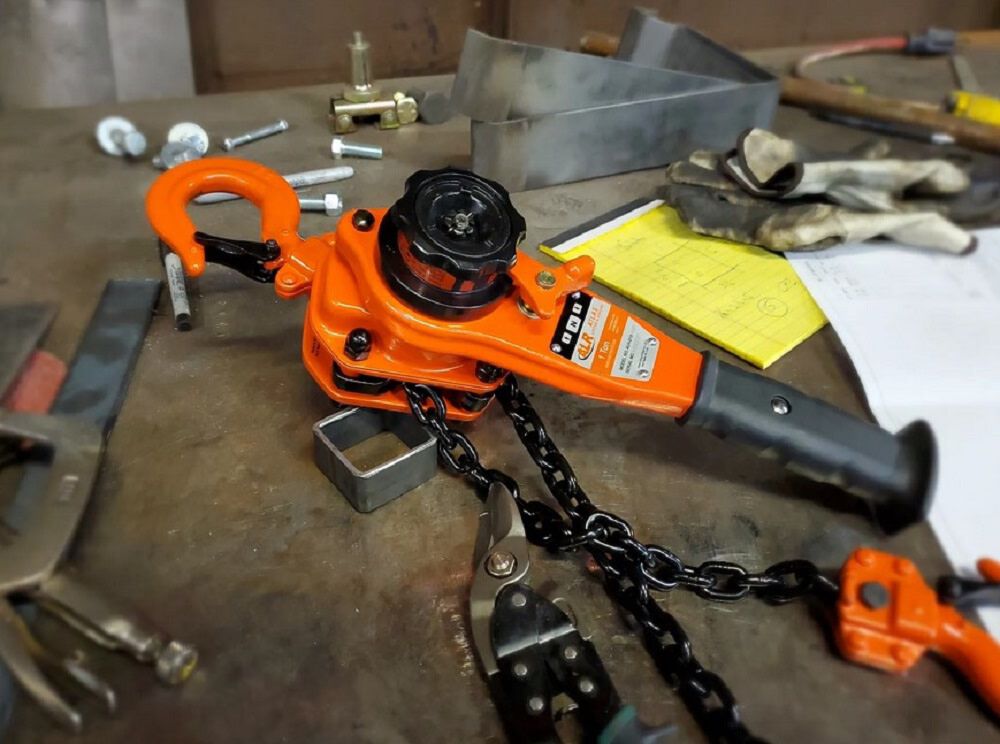

Atlas Lifting and Rigging Lever Hoist 3.2T 20' Chain with Overload Protection ShipHook
Atlas Lifting & Rigging (ALR) has designed these hoists to exceed it's rating by 150%.
The safety features are: At the base and tip of each hook are permanent measuring points to check the hooks throat opening for signs of "stretching", an indication that the hoist has been overloaded and the hook should be replaced.
The zinc coating on crucial parts gives it the ability to withstand harsh conditions.
Quick hoist positioning allows our lever hoist to adjust without accidentally freewheeling under load.
Our hoist does not have to be under load to adjust with the ratchet.
Welded structural stay bolts increases strength and safety.

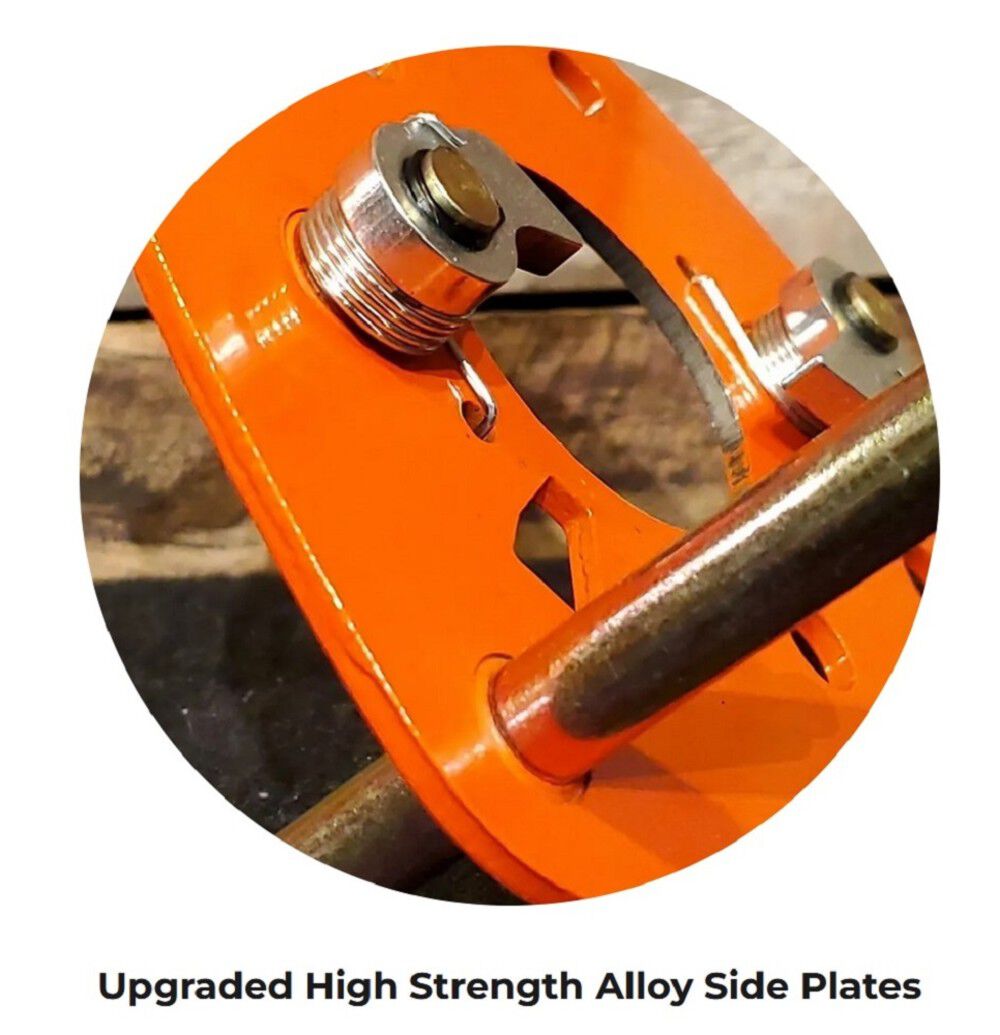

High strength alloy side plates gives it the strongest structure in the industry.
Sintered brake system gives our brake pads extraordinary strength, it won't crack, shatter or absorb moisture.
Overload protection will protect the user and the hoist from damage.

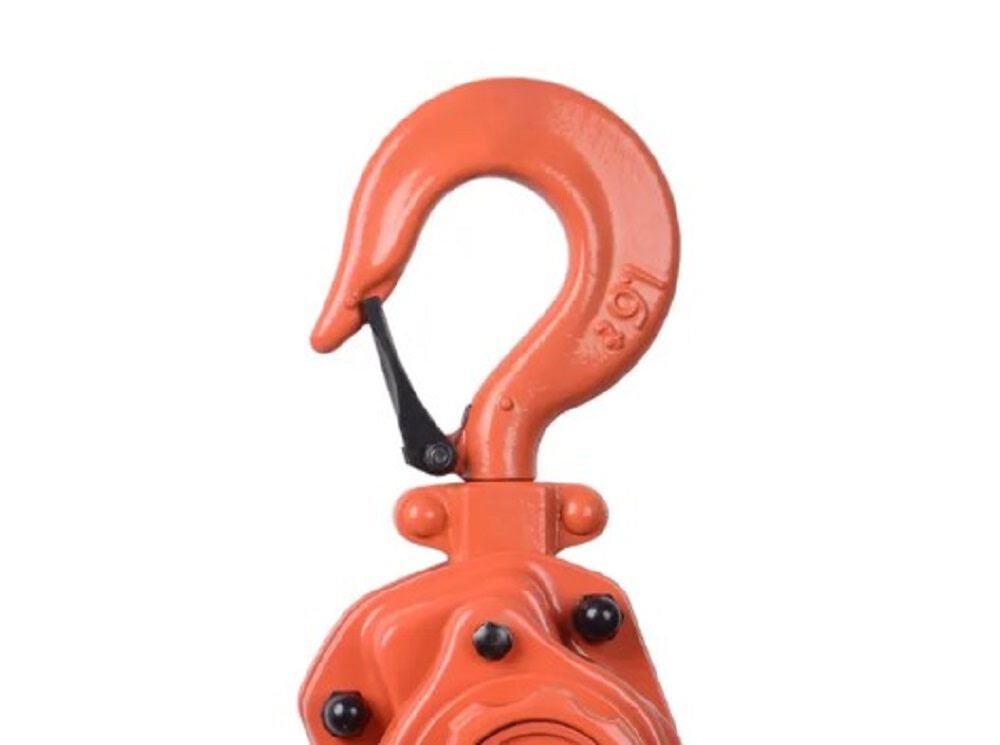

Ship hook has a blunt tip for point loading and engineered to help eliminate stretched hooks for safety.
California Proposition 65 Warning.Features

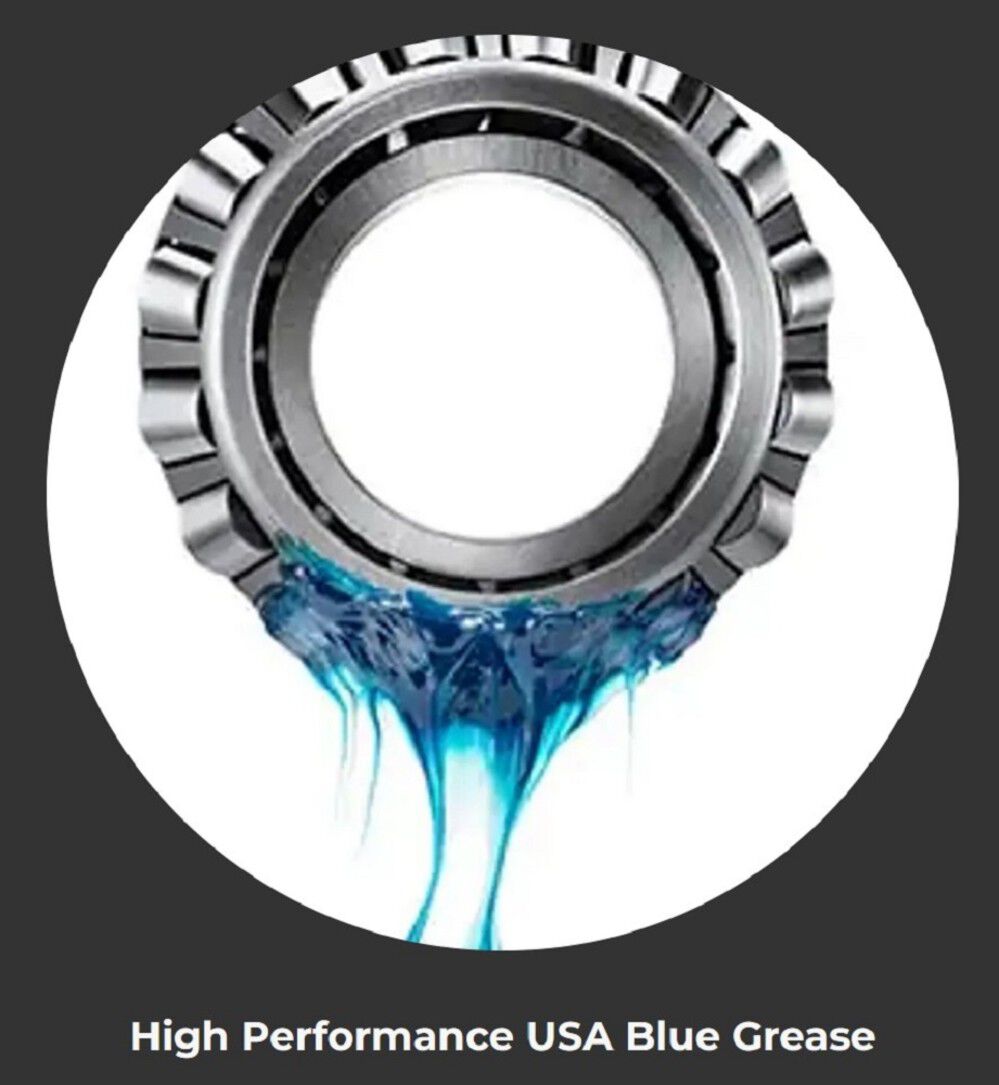

- Zinc-coated for harsh conditions/Blue Grease for high performance
- Quick-adjust free spool feature
- Welded structural stay bolts
- All-steel construction
- Sintered brake system
- Upgraded high-strength side plates
- Every ALR hoist meets or exceeds OSHA & ANSI/ASME HST-3 standards
- Atlas Lifting & Rigging Lever Hoist 3.2T 20' Chain with Overload Protection ShipHook
- Overload Protection
Specifications
A-Frame Design - No
Brand Name - Atlas Lifting and Rigging
Assembled Depth (in) - 8
Assembled Weight (lbs) - 61.160000000000004
Assembled Width (in) - 6.5
ASTM B30.21 Compliant - Yes
Capacity - 7000 lbs
Color - Orange
Country of Origin - China
Height (in) - 20.5
MFG Part # (OEM) - ALH-032-20-OP-SH
Material - Steel
Maximum Load (lbs) - 7000
Overall Length (in) - 240
Package Contents - Hoist
Package Depth - 8.66184
Package Height - 7.08696
Package Weight - 61.160000000000004
Product Condition - New
Towable - No
UPC - 810044341584
Warranty Type - 3 Years Limited
Weight Capacity (lbs) - 7000
