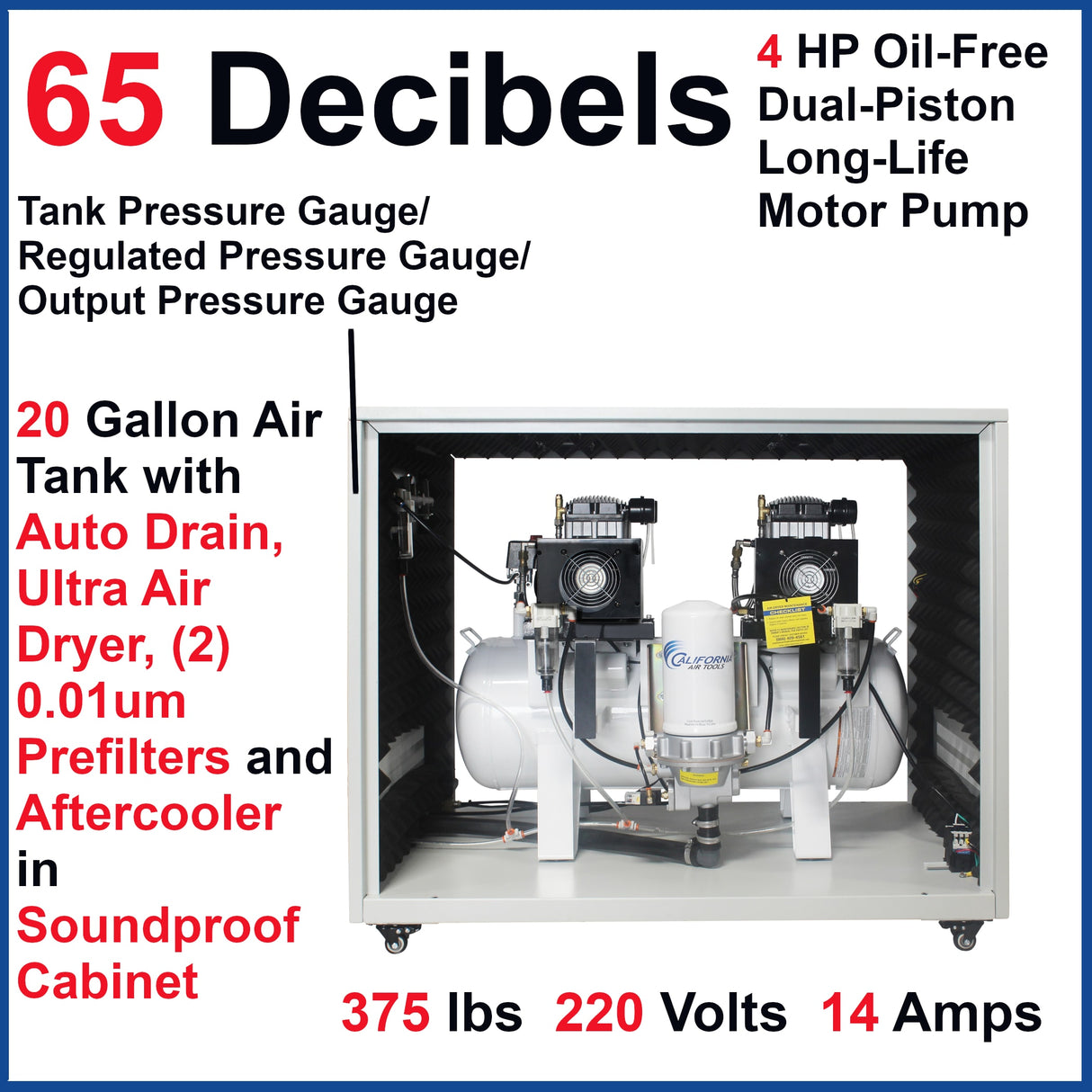

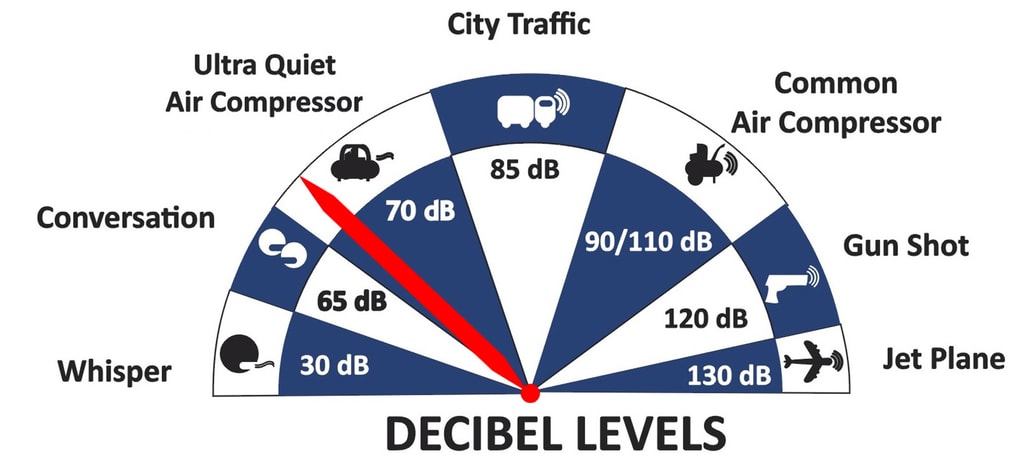

The CALIFORNIA AIR TOOLS 20040DSPCADC Ultra Quiet, Ultra Dry Oil-Free Air Compressor with Air Drying System in Soundproof Cabinet is designed to be one of the quietest 4.0 Hp air compressors in the industry having only 65 decibels of sound.
The Powerful 2.0 HP motors operate at only 1680 RPM creating less noise and less wear.
The Motors have been designed to increase duty cycle and allow for longer continuous run times.The 20040DSPCADC Air Compressor has an Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 1500 hours or less.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and eliminates oil from being in the air.

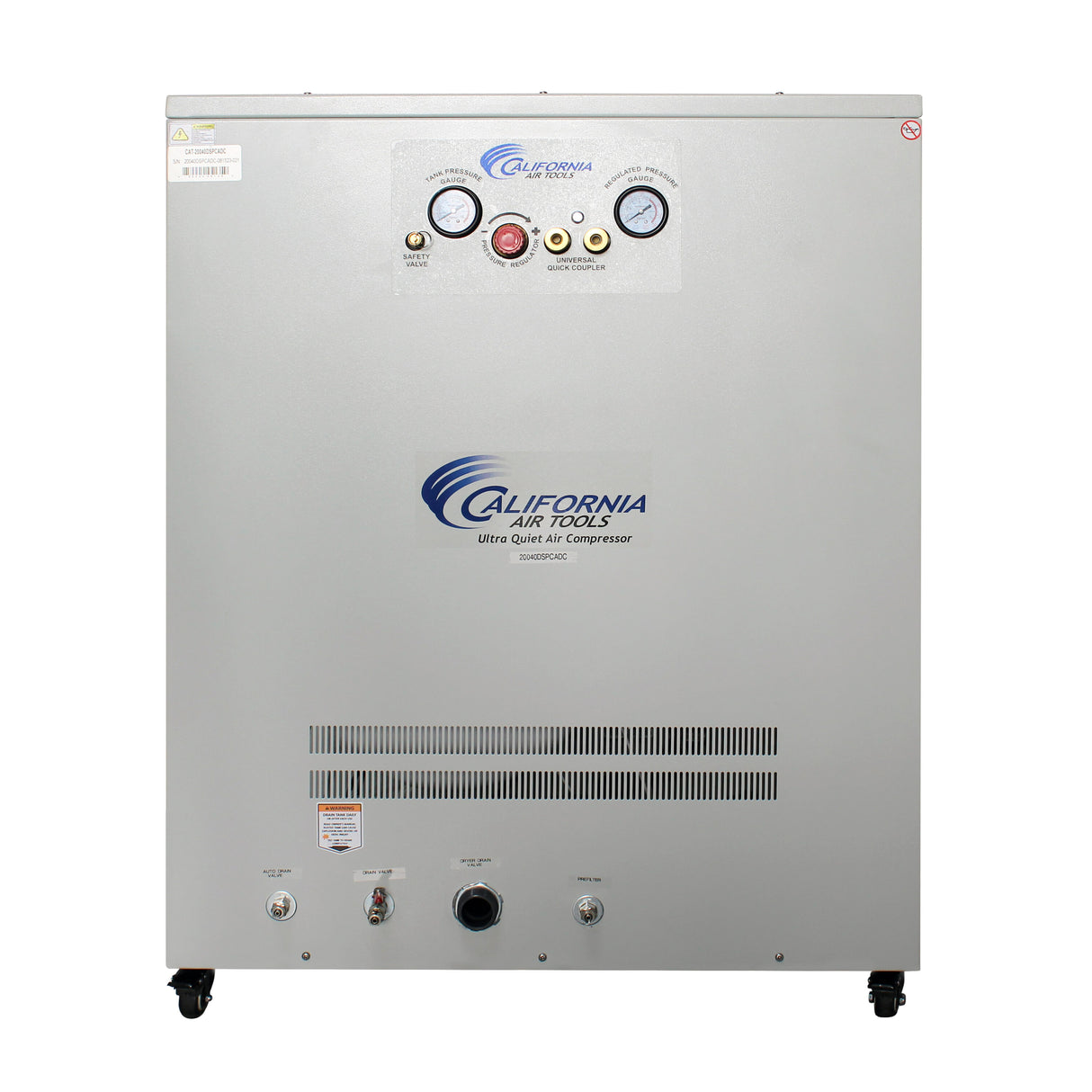

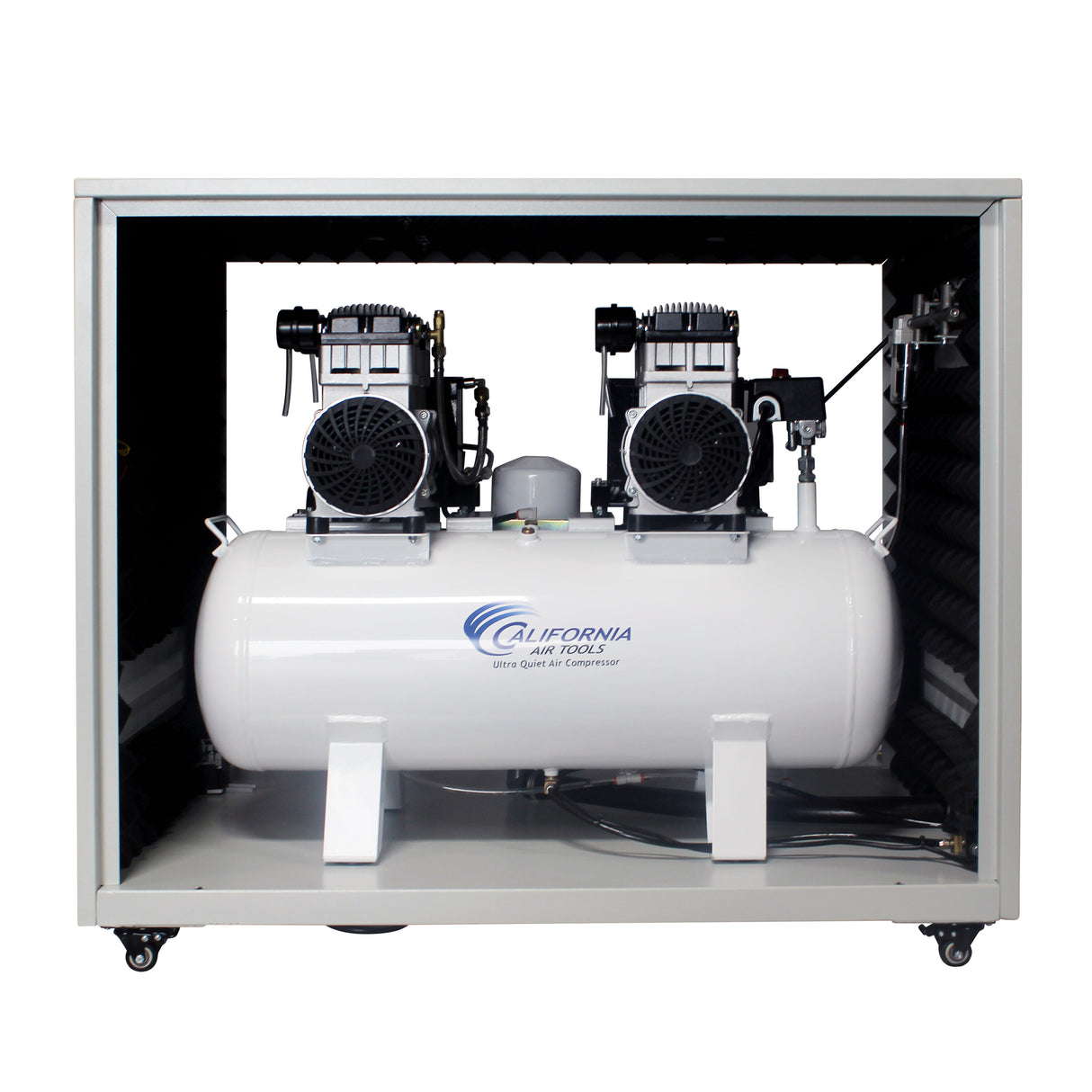

The sturdy steel soundproof cabinet has a large 20-gallon steel air tank and caster wheels that makes it easy to move.
The interior of the cabinet is lined with acoustic soundproofing foam insulation to reduce the air compressor's noise and vibration.
The two latching door handles allows for easy access to the air compressor.
The four exhaust fans are designed to remove the air from the cabinet for a cooler running air compressor.
The Air Dryer is specially designed to remove up to 98% of the water vapor from the air to protect sensitive tools and machinery.
PDP performance range (-20' F.
to -51' F.) Air Quality: ISO 8573 - Class 2.3.1.

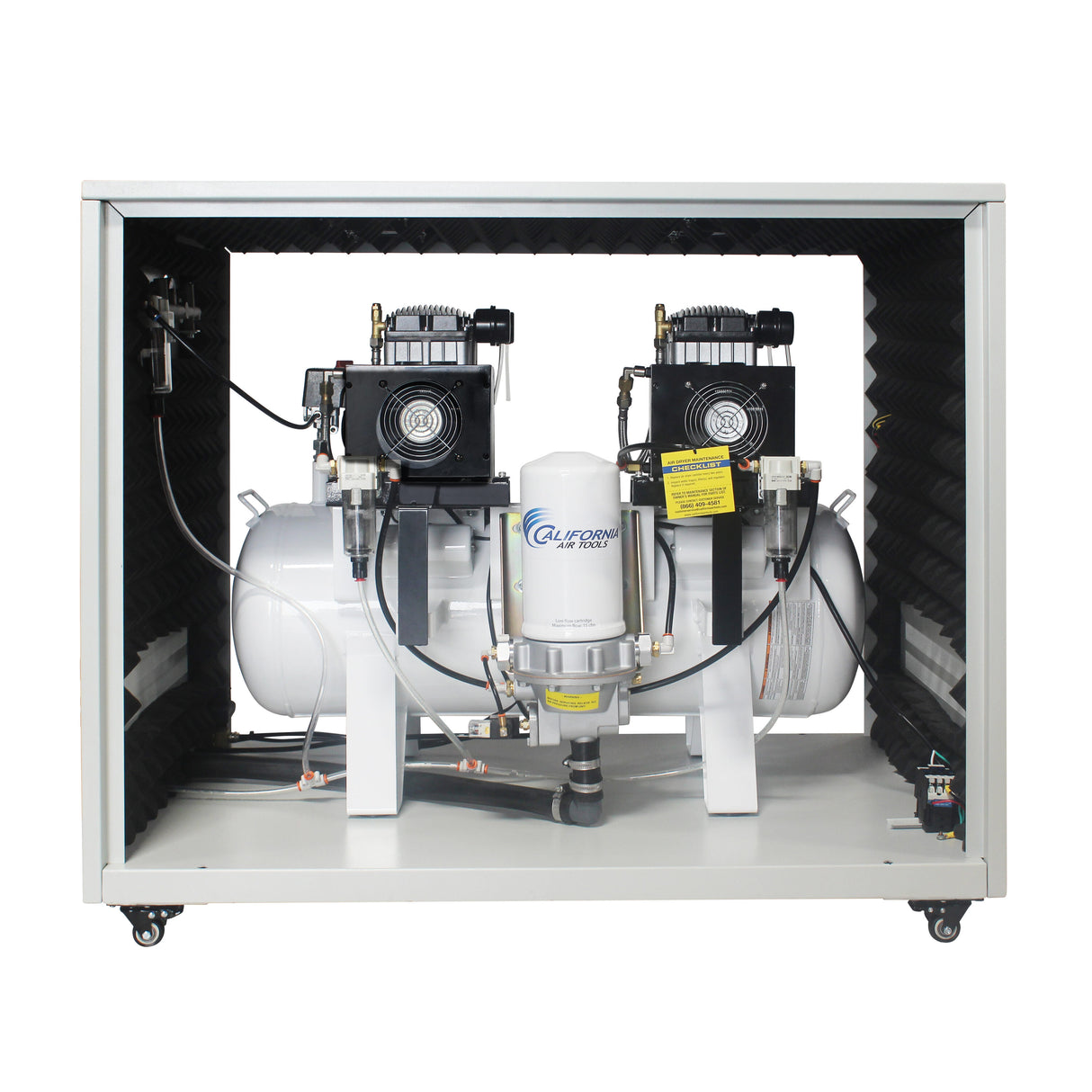

To dry the air from the air compressor an Aftercooler and Dryer are utilized.
The aftercooler is a heat exchanger for cooling the discharge air from the air compressor.
The easy to replace "Spin-On" Air Dryer Cartridge has a regenerating High-Temperature Molecular Sieve Desiccant to dry the air.
This dryer has a life of 2-years.

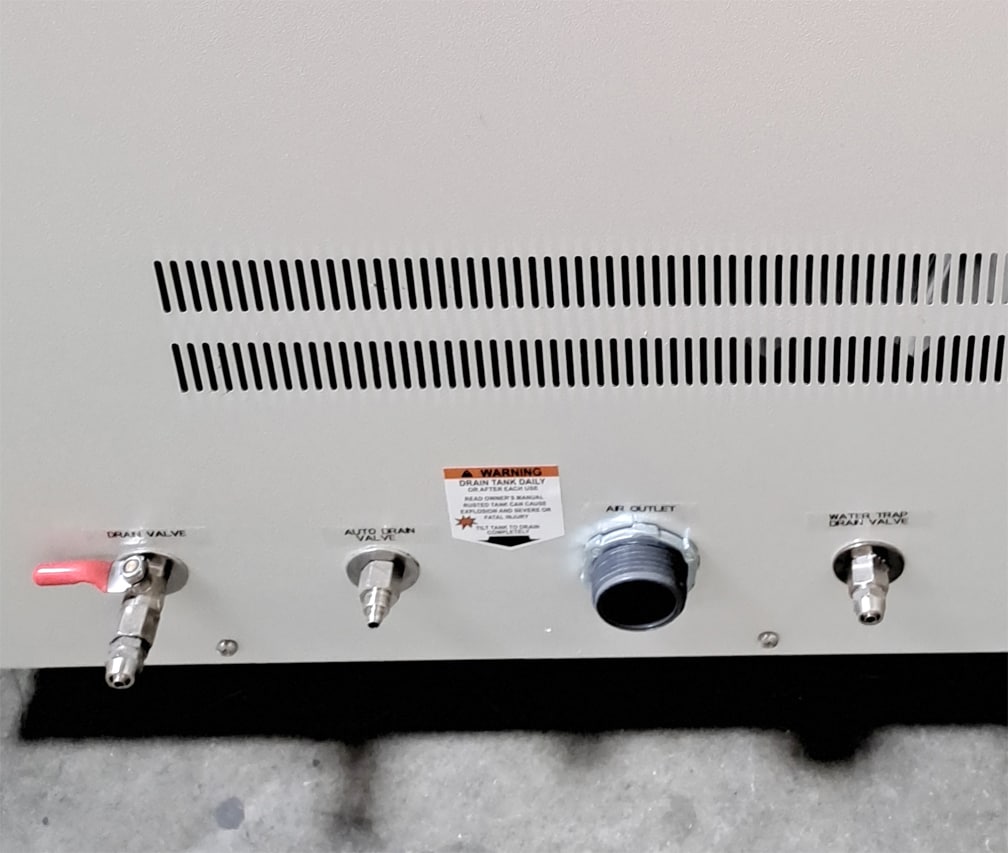

The EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank.
The manually set timer allows you to set the time for both the frequency and duration of the process.
Sound Proof Cabinet

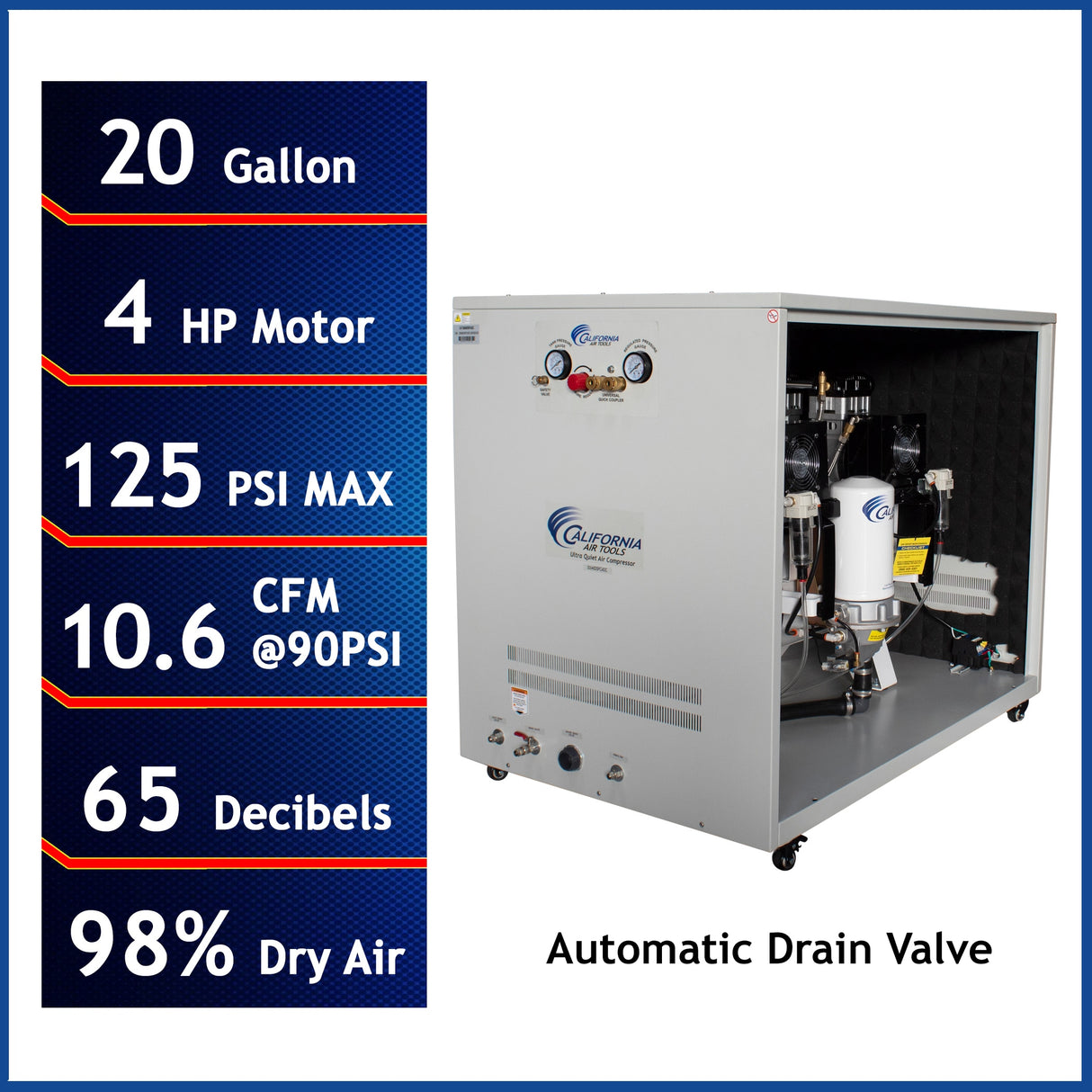

Automatic Drain Valve installed
20.0 Gallon Steel Tank
Includes a Sound Proof Cabinet, Ultra Dry Air Dryer, Aftercooler and Auto Drain
Two Powerful 2.0 HP (Rated/Running) Motors 220v only
12.80 CFM at 40 PSI
Maximum Pressure - 130 PSI

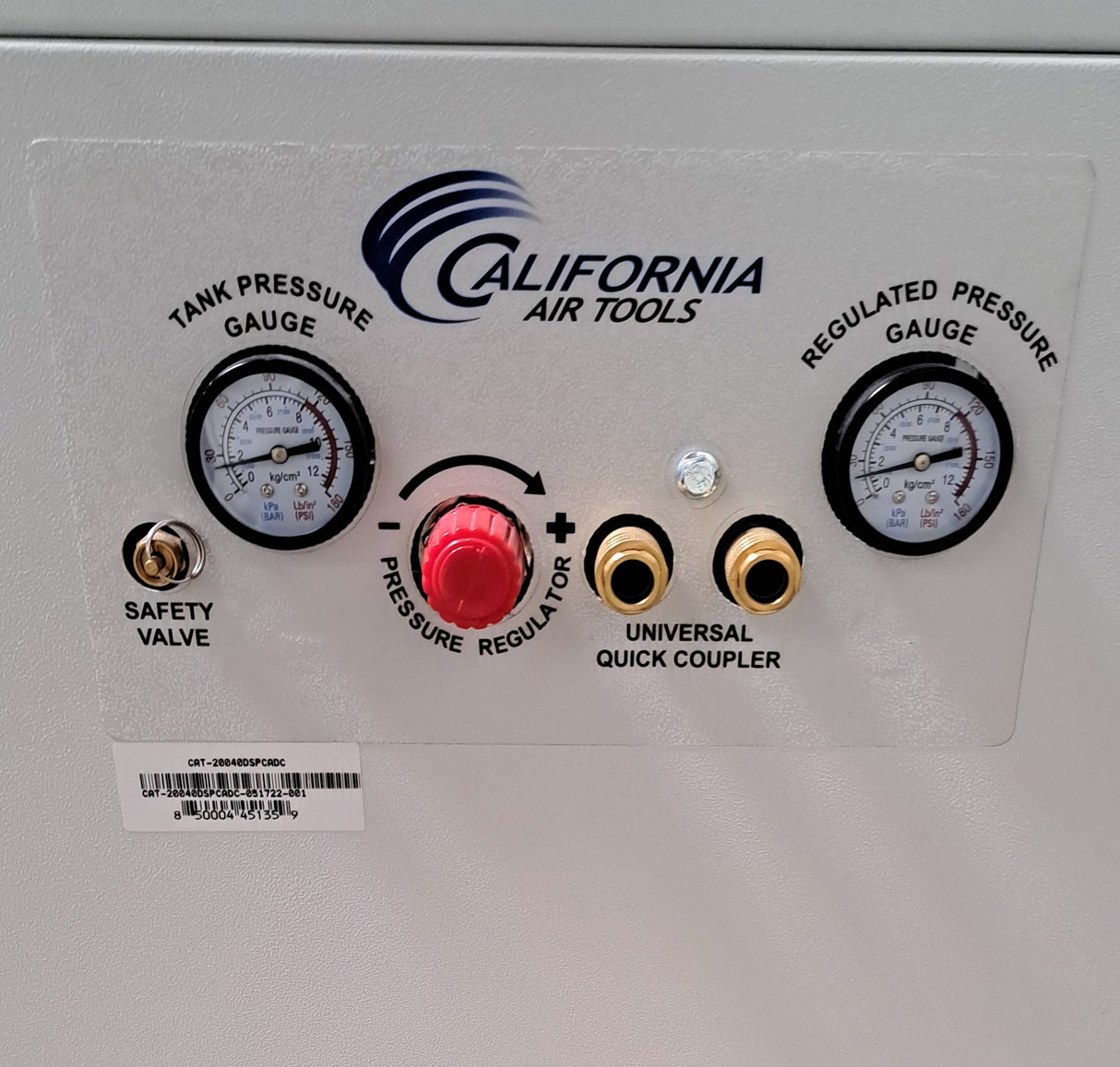

Two Pressure Control Gauges
One 1/4-in Industrial Quick Connectors
Specifications
Type: Electric
Dimensions
Fitting Size: 1/4-in
Tank Capacity (Gallons): 20
Weight (lbs.): 370
Features
Accessories Included: No
Air Delivery SCFM @ 100PSI (CFM): 0
Air Delivery SCFM @ 175PSI (CFM): 0
Air Delivery SCFM @ 90PSI (CFM): 10.60
Amperage: 14
Cordless: No
Decibel Rating (Decibels): 65
Engine Brand: N/A
Engine Displacement (Cu. Centimeters): 0
For Use with Air Brushing: Yes
For Use with Bolting: Yes
For Use with Brad Nailing/Stapling: Yes
For Use with Cutting: Yes
For Use with Drilling: Yes
For Use with Finish Nailing: Yes
For Use with Framing Nailing: Yes
For Use with Grinding: Yes
For Use with HVLP Painting: Yes
For Use with Roof Nailing: Yes
For Use with Sanding: Yes
For Use with Spraying: Yes
For Use with Surface Prep: Yes
Maximum Pressure: 130 PSI
Motor Type: Induction
Noise Rating: Quiet (70 decibels or below)
Number of Tools Included: 0
Phase: Single-phase
Portable: Yes
Pump Type: Oil-free
Rechargeable: No
Running Horsepower: 4
Stage: Single stage
Start Type: Electric start
Tank Style: Horizontal
Voltage (Volts): 220
Warranty
Warranty: 1-year limited
Certifications
CA Residents: Prop 65 Warning(s): Yes
Safety Listing: Not safety listed
Miscellaneous
UNSPSC: 40151600
