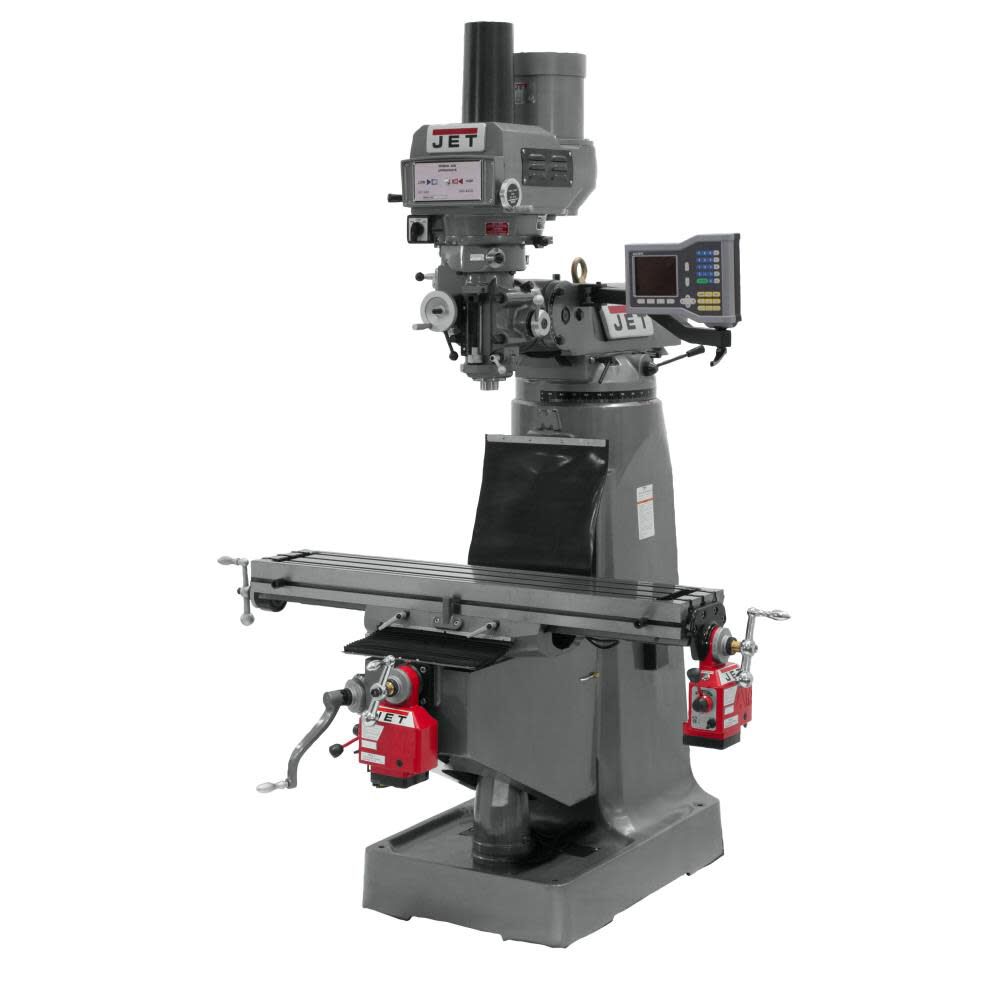

JET JTM-4VS Mill with x and Y-Axis Powerfeeds with Power Drawbar
Constructed using the MeehaniteÆ casting process, JET Variable Speed Milling Machines provide consistent and reliable operation.
Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use.
Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty
California Proposition 65 Warning. View Warning LabelFeatures
- Certified Meehanite® Castings
- Chrome lead screws on X and Y axis
- Large diameter quill is chromed
- High precision Class 7 spindle bearings
- Chrome plated motor shaft with lower bearing support
- Spindle head is internally cooled
- Heavy duty splined motor drive
- One piece quill pinion and shaft
- Three stage power downfeed with automatic stop
- Heavy duty spindle brake
Specifications
Brand Name - JET
Assembled Weight (lbs) - 2420.0
California Proposition 65 Warning Required - Yes
Capacity - 660 Lbs
Chuck Design - Keyless
Color - Gray
Country of Origin - Taiwan
CSA Certified - No
ETL Listed - No
Head Tilt (Left Or Right) - 90
Height (in) - 85.0
MFG Part # (OEM) - 690009
Material - Cast Iron
Package Contents - JTM-4VS Mill with x and Y-Axis Powerfeeds with Power Drawbar
Package Depth - 63
Package Height - 85
Package Weight - 2420
Package Weight (lbs) - 2420
Product Condition - New
Quill Diameter - 3.375
RPM - 1720
Stand Included - Yes
Switch Type - Push Button
UL Listed - No
Unit of Measurement - Inch
UPC - 662755508189
Variable Speed - Yes
Voltage - 230/460 Volts
Warranty Type - 2 Years Limited
Weight (lbs) - 2420.0
X Axis, Longitudinal (in) - 34.0
Y Axis, Cross (in) - 12.0
Z Axis, Knee (in) - 0
